The global shift towards more sustainable marine fuels has accelerated the demand for Liquefied Natural Gas (LNG) as a cleaner alternative. As regulatory bodies continue to tighten emissions restrictions, LNG is being adopted as a primary marine fuel to meet environmental standards. The operations surrounding LNG bunkering are critical to ensure safe, efficient, and compliant use of this alternative fuel. (SIGTTO)

What is LNG Bunkering?

LNG bunkering refers to the process of supplying ships with liquefied natural gas. The LNG bunkering process involves the transfer of LNG from storage tanks onshore or onboard directly into the fuel tanks of ships that use LNG as their primary fuel. The process is precise, regulated, and involves strict adherence to safety protocols to avoid incidents like spills or vapor leaks.

As LNG is stored at extremely low temperatures (around -162°C), specialized equipment and procedures are required to manage this volatile and cryogenic fuel. Unlike conventional marine fuels such as diesel or heavy fuel oil, LNG bunker operations are more complex due to the hazardous properties of LNG and the infrastructure needed to handle it.

Key Types of LNG Bunkering Methods

There are several methods employed in LNG bunkering operations, each tailored to the infrastructure and requirements of the shipping company. The most common bunkering methods include:

Truck-to-Ship (TTS) Bunkering

In Truck-to-Ship bunkering, LNG is transported via specially designed tank trucks and transferred directly to the vessel. This method is commonly used in ports where fixed infrastructure, such as pipelines or storage tanks, is not available. Although TTS is suitable for small-scale bunkering operations, it is limited by the size of the truck and the quantity of LNG it can transport.

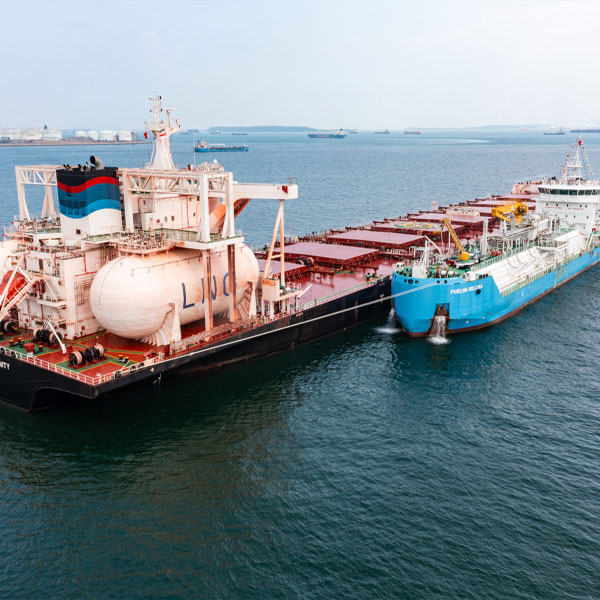

Ship-to-Ship (STS) Bunkering

Ship-to-Ship bunkering involves the transfer of LNG between two vessels—typically a bunkering vessel and the receiving ship. This method is highly versatile and efficient, particularly in large ports where multiple vessels need to be refueled. STS bunkering operations are conducted under stringent safety measures due to the potential risks of handling such large volumes of LNG.

Terminal-to-Ship (Pipeline) Bunkering

In Pipeline bunkering, LNG is delivered to the ship via fixed pipelines from an onshore storage facility. This method is ideal for ports with dedicated LNG terminals. Pipeline bunkering is considered one of the safest and most efficient methods for large-scale LNG operations, as it reduces the need for mobile transport units and ensures a continuous supply of LNG.

Portable Tank-to-Ship (PTS) Bunkering

Portable tanks are used to transfer LNG in Portable Tank-to-Ship bunkering operations. This method is suitable for smaller vessels and in locations where fixed LNG infrastructure is unavailable. The portable tanks are typically loaded onto the ship and later removed once the fuel transfer is complete.

The Importance of Safety in LNG Bunkering

The handling and transfer of LNG present unique safety challenges due to its flammability and cryogenic nature. Safety protocols must be followed meticulously during all phases of the LNG bunkering process. Some of the most important safety considerations include:

Emergency Shutdown Systems (ESD): These systems are installed to automatically stop LNG flow if abnormal conditions are detected. ESD systems are critical in preventing overfilling and leaks.
Gas Detection Systems: Continuous monitoring of the atmosphere around the bunkering site for the presence of LNG vapor is essential to prevent fire or explosion risks.
Training and Certification: Personnel involved in LNG bunker operations must undergo specialized training to handle cryogenic fuel safely. Certification ensures that operators are aware of the specific risks associated with LNG and know how to manage them effectively.
Personal Protective Equipment (PPE): Due to the extreme cold of LNG, operators must wear specialized protective gear, including gloves, face shields, and insulated clothing, to prevent frostbite or injuries from cold burns.
BOG Management: BOG management is critical LNG bunkering, ensuring closed loop operations at all times within safe parameter is essential for both LBV and RV.

Regulatory Requirements for LNG Bunkering

Global shipping regulations have become increasingly stringent regarding emissions, and LNG bunkering must comply with both international and local laws. Some of the most important regulatory frameworks governing LNG bunkering include:

The International Maritime Organization (IMO)

The IMO has established rules aimed at reducing sulfur and greenhouse gas emissions from ships. LNG is recognized by the IMO as a compliant fuel under the International Convention for the Prevention of Pollution from Ships (MARPOL). In particular, MARPOL Annex VI limits the sulfur content in marine fuel to 0.5%, making LNG a viable solution for shipowners looking to meet this requirement.

Advanced LNG Transfer Systems

New transfer systems have been developed to minimize the boil-off of gas during bunkering operations. These systems reduce LNG loss, enhance transfer efficiency, and ensure the safety of the operation.

Hybrid Bunker Vessels

Hybrid bunker vessels are being introduced to streamline Ship-to-Ship bunkering operations. These vessels are designed to operate using both traditional marine fuels and LNG, offering versatility in bunkering services across different vessel types.

Technological Advancements in LNG Bunker Operations

Recent years have seen significant technological advancements in the LNG bunkering industry, driven by the need for increased efficiency and safety. Some notable advancements include:

Automation and Remote Monitoring

Automation technologies are being integrated into LNG bunkering operations to enhance precision and safety. Remote monitoring systems allow operators to oversee the bunkering process from a safe distance, reducing the risk of human error. These systems can track tank levels, monitor pressure, and detect potential issues in real-time.

Local and Port Regulations

Local port authorities often have specific regulations and requirements for LNG bunkering operations within their jurisdictions. For example, ports may have particular rules regarding the locations where bunkering can take place, the types of bunkering methods allowed, and safety procedures.

Class Societies

Ship classification societies, such as Lloyd’s Register or Bureau Veritas, set standards for the design, construction, and operation of ships, including those that use LNG as fuel. Compliance with class society rules is essential for the safe and legal operation of LNG-powered vessels.

Challenges and Opportunities in LNG Bunkering

While LNG bunker operations provide a cleaner alternative to conventional marine fuels, several challenges remain:

Infrastructure Development: The expansion of LNG bunkering infrastructure is crucial to meet the growing demand for LNG-powered ships. Ports worldwide are investing in new terminals, pipelines, and storage facilities to facilitate LNG bunkering.
Cost Considerations: Although LNG is a cheaper and more environmentally friendly fuel in the long run, the initial investment required for retrofitting ships and building infrastructure can be prohibitive for some operators.
Environmental Impact: While LNG significantly reduces emissions of sulfur oxides (SOx) and nitrogen oxides (NOx), its environmental impact is not entirely neutral. The production and transportation of LNG can result in methane slip, which is a potent greenhouse gas.

Despite these challenges, LNG bunkering presents numerous opportunities for the maritime industry to reduce its carbon footprint and comply with stricter environmental regulations.
